Scienta 9145 – Scanner Frame

Scienta 9175 scanner

Key Features

  • Single-sided Scanner Model with Stainless Steel cover plate
  • Up to 15.000 mm beam width
  • Very durable scanner with large payload capacity; simple interface and integrated motor drive
  • Optional Y-axis movement for the measuring head

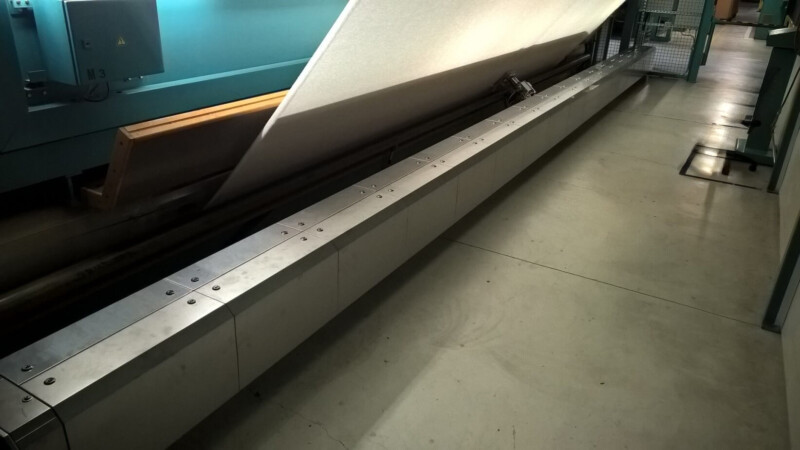

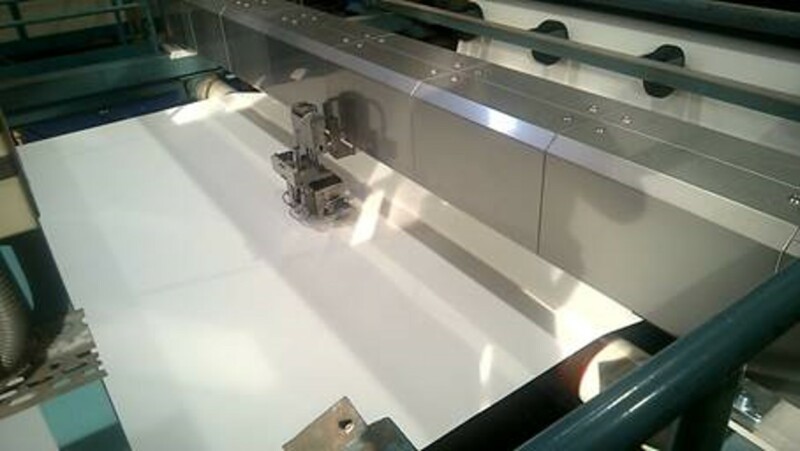

Installation Examples

Features

The Model 9145 single sided scanner is designed for tough environments such as press section in paper machines. All cover plates of the scanner is made of stainless steel and components for high temperatures and high humidity levels.

The 9145 scanner responds to web breaks and other external commands. Temperature monitoring of the cooling system & electronics are included as well as air flow for sensor windows.

A large duct fan blows air into the frame keeping the scanner frame pressurized.

Standard features of Scienta Model 9145 scanner are an AC electrical motor with a sealed gearbox, end limit switches and a linear track with stainless steel parts. A standard frequency inverter enables a smooth and fast response and controls the sensor movement on the web. The scanner is controlled by a standard PLC.

A tooth-belt driven linear track guides the sensor movement on the web. Not only does this guarantees accuracy, but it is tough enough to ensure years of trouble-free operation.

The Scienta sensors are either in a single point or scanning and include sensor cooling if needed.

Technical Specifications

Scanner Type9145
Construction Stainless Steel box frame
on a 160x180mm
H-beam machined
support
DimensionsScanner width max. 15m
Frame Size 185x260mm
Sensor weight up to 50 kg allowed
Frame Weight30kg/m + beam weight
Scanning Speed100-400mm/s, electrical
motor controlled by
inverter
Head PositioningAccuracy +/- 2mm
Scanner Type9145
Max. Ambient temperature130°C using air cooling
Power Requirement110-230 VAC, 50/60 Hz, 1 kW max.
Drive beltSteel reinforced PU timing belt
Motor drive60 W AC
Guiding system8 large neoprene covered wheels on machined steel guides
Instrument Air6 bars (90psi) oil free
0,01 um filter, 50 l/min
