Scienta 1010 Scanner

Please accept statistics, marketing cookies to watch this video.

Key Features

  • Large Frame Scanner Model
  • Up To 10.000 mm sheet width
  • Liquid cooled sensor platform, also for harsh environments
  • Rugged, modern design with fresh air over pressurized frame

Installation Examples

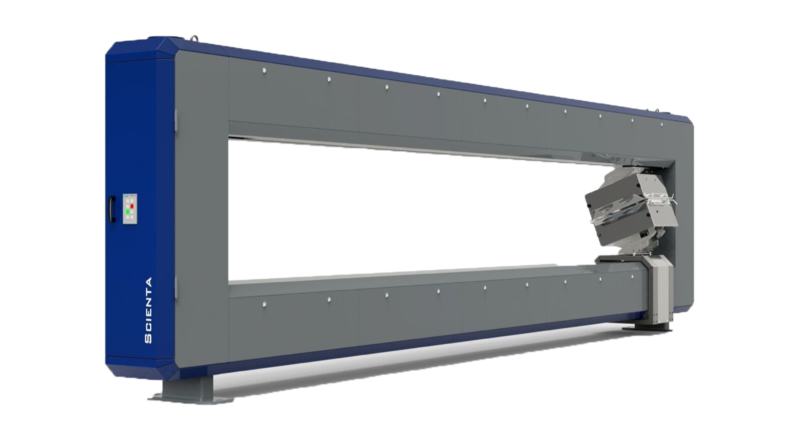

The large frame Scienta Model 1010 scanner
allows it to be fitted into existing lines. A strong,
welded RHS-beam structure ensures dimensional stability for high measurement precision. The completely enclosed structural beam provides protection from dimensional deviations due to external temperature variations. Pulver painted steel scanner covers prevent dust and dirt contamination of the head transport system. The covers are easily removed for inspection.

The upper and lower head carriages are supported by 3 large diameter steel wheels for smooth scanning. It has a modular construction with all sensors mounted in-line in the machine direction for simultaneous measurement. Automatic standardization and compressed air head cleaning functions are standard.
A special clutch system for the drive train opens up in emergency situations. Operator safety is thus ensured when working near the scanner.

Technical Specifications

Scanner Type1010
Construction 200 mm RHS-beam frame
– welded construction
DimensionsScanner width max.
12000 mm
Beam width max.
10800 mm
Width Requirement600-1200 mm
Maximum number of
installed sensors
4 including sheet temperature
Frame Height1932 mm
Frame Weight1000 kg plus 100 kg/m
Head PositioningAccuracy +/- 2mm
Scanner Type1010
Scanning Speed100-400 mm/sec
typical, governed by inverter
assuring a smooth operation
Power Requirement110-230 VAC, 50/60 Hz, 1 kW max.
Drive beltSteel reinforced PU timing belt
Scanner drive120 W AC with a heavy-duty
tooth-wheel gearbox
Guiding systemRound steel guide rods with large diameter
steel wheels
6 bars (90psi) oil free
0,01 um filter, 100 l/min
