ROTATING MOVEMENT SOLUTIONS

Tailored solutions for rotating movement



Our completely custom movement solutions can be cost-efficiently tailored in terms of every detail, such as strength, accuracy, noise level, lifetime and footprint.

Most common solutions for rotating motion mechanisms are worm gears, helical gearing, planet gearing and belt drives.



Read more about our design & manufacturing services

TAILORED TORQUE
AND ANGULAR SPEED

ACCURACY UP TO
0,01 DEGREES

TAILORED FOOTPRINT

TAILORED IP RATING

TAILORED NOISE LEVEL

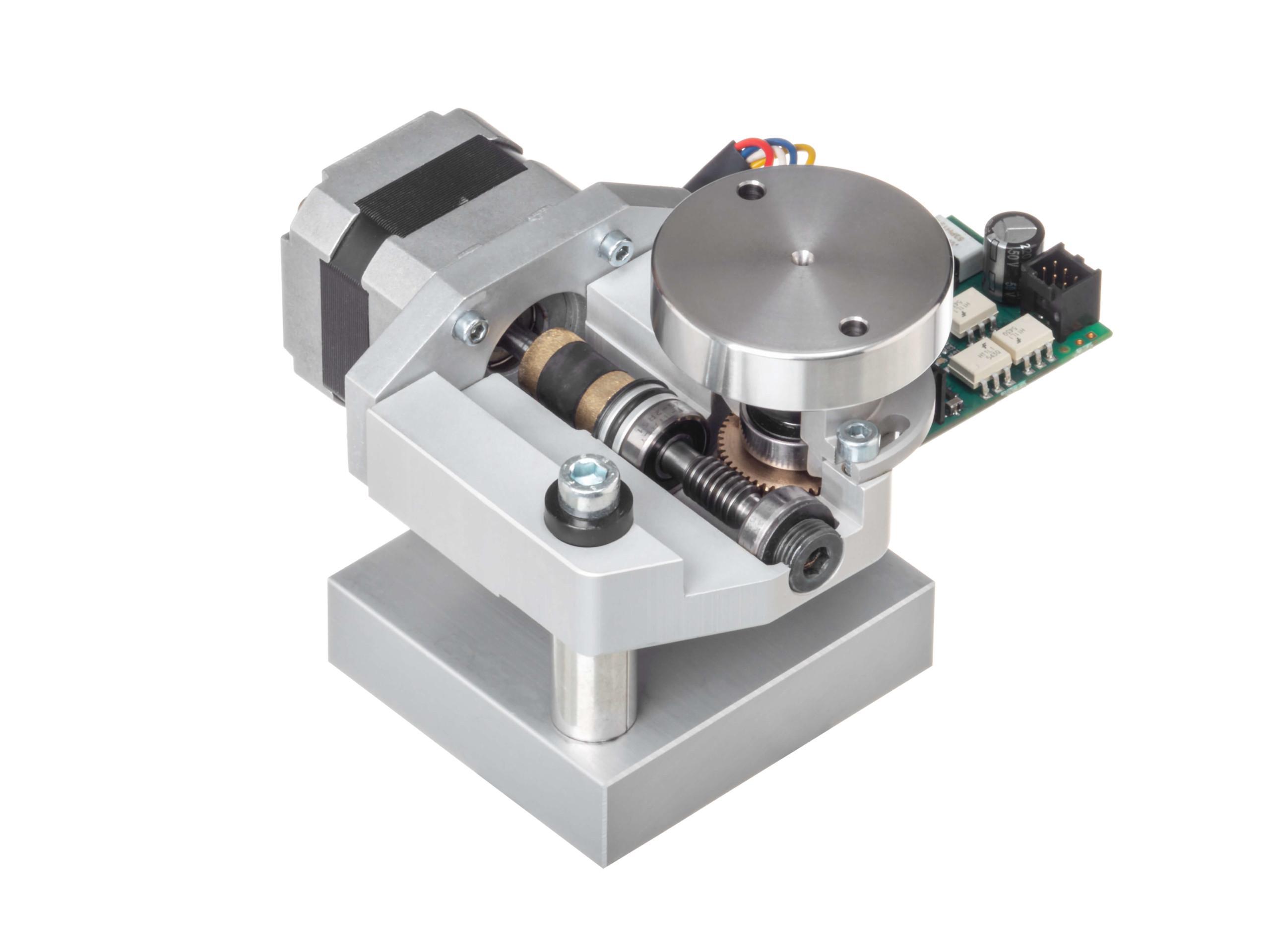

Worm gears



Worm gear sets are used to transmit power between non-parallel, non-intersecting shafts, usually having a shaft angle of 90 degrees. Worm gears consist of a worm, which has teeth wrapped around a cylinder, and the mating member, worm wheel.

Worm gear sets are generally used in applications where the speed reduction ration is between 3:1 and 100:1, and in solutions where very accurate rotary indexing is required.

Due to the design of worm gear, several teeth are in mesh, and thus sharing the load, at all times. As a result of this, the worm gear sets will run very smoothly, and are able to have high load capacities.

One main feature of worm gear sets is irreversibility. This means that the worm cannot be driven by the power applied to the worm wheel, which means inherent built-in safety mechanism for example in the event of a power failure.



Worm gear properties:

  • Smooth run
  • High load capacity
  • High reduction ratio
  • Irreversibility
  • Low efficiency in high speed applications



Helical gearing



Helical gears transmit power between parallel shafts. Helical gears have teeth that are oriented at an angle to the shaft, unlike spur gears, which are parallel.

This causes more than one tooth to be in contact during operation and this is why helical gears are capable of carrying more load than spur gears. Due to the load sharing between teeth, this arrangement also allows helical gears to operate smoother and quieter than spur gears.

Helical gearing solutions are cost-effectively tailored regarding shaft distance and gear ratio, and allow for good efficiency.

Footprint can be optimized for example by using gear segments instead of complete gears, if motion solution does not require a wide range of motion.



Helical gearing properties:

  • Easily tailored
  • Cost-efficient
