Scienta 9144 – fixed point scanner

Tasowheel scienta 9144 scanner

Key Features

  • Fixed Point Scanner Model with C-frame sensor support
  • Measurement position 400 mm from sheet edge
  • Scanning of sheet edge to show edge moisture profile
  • Tolerates sheet fluctuations
  • All stainless steel construction for narrow space installations
  • External PLC cabinet with touch panel local display
  • Connection to DCS with Profinet, Modbus, OPC or analog signals

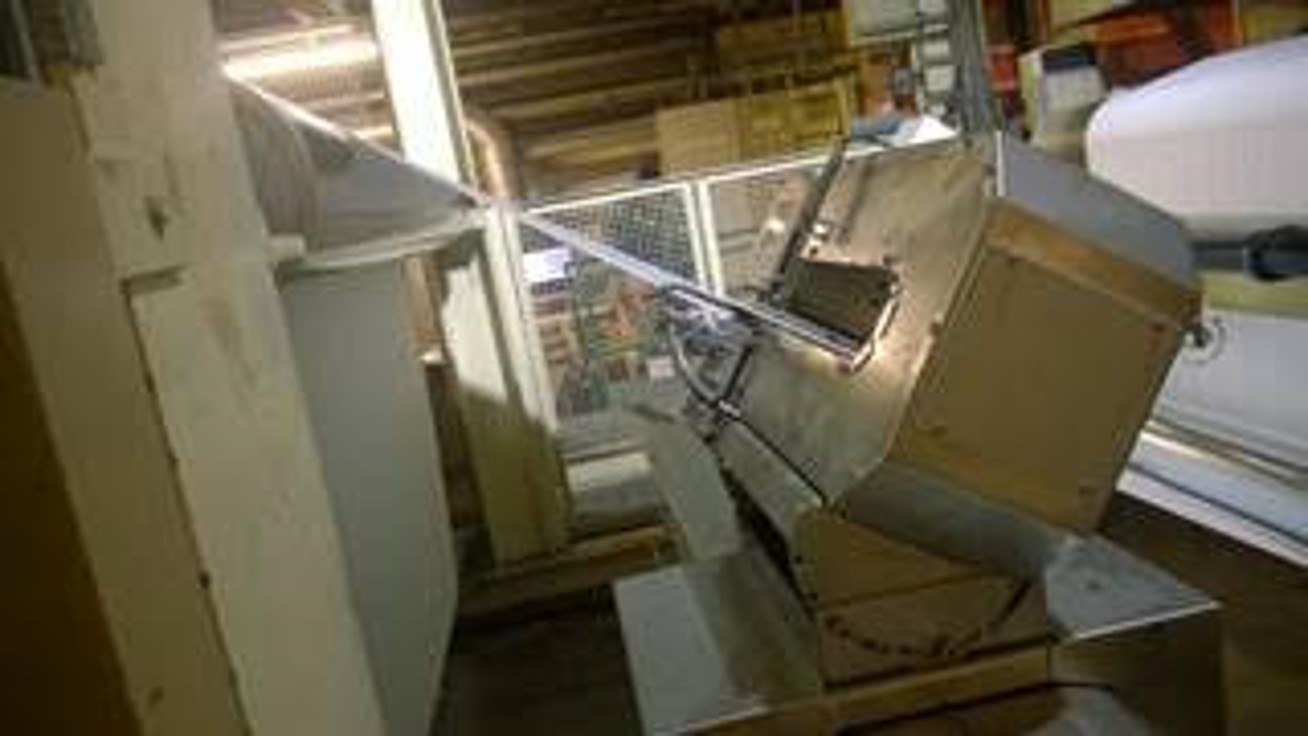

Installation Examples

Features

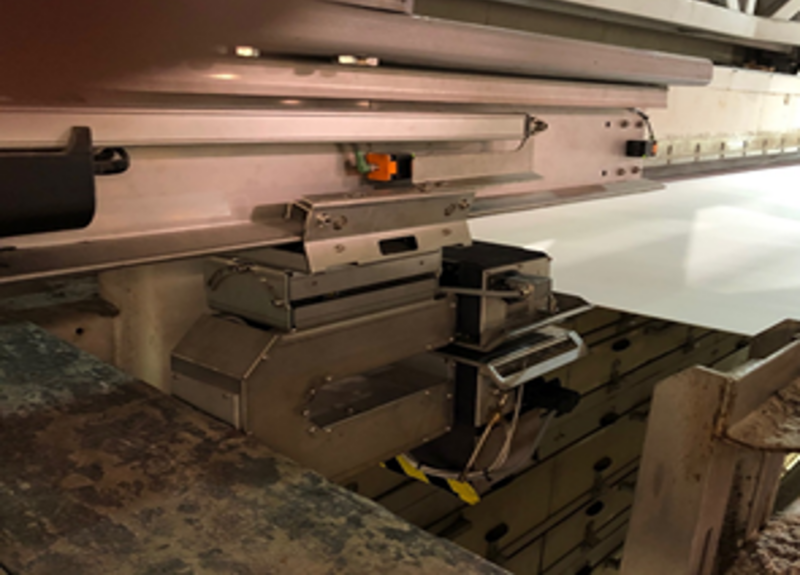

  • Model 9144 for C-frame installation

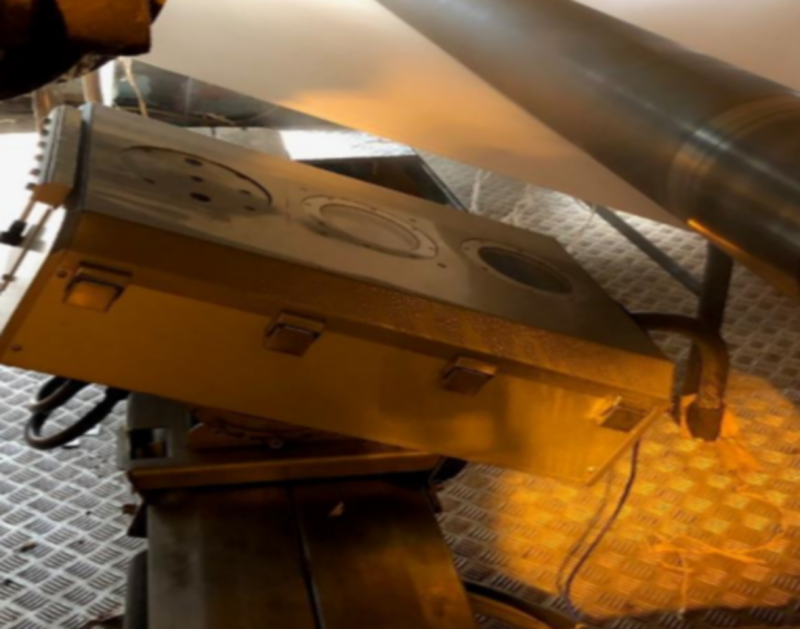

  • Model 9144P for single-sided installation
  • Stainless Steel construction
  • Adjustable reach, max. 500 mm (9144P up to 3 m)
  • Service free construction
  • Easy and convenient to install and operate
  • Works well in dirty and humid conditions
  • Data analysis (FFT etc) add-on program available

Technical Specifications

Scanner Type9144
Construction Double-sided, C-frame,
Stainless Steel construction
Max Measuring depth400 mm
ExtrasGuide rolls for the sheet
Power supply24 VDC, 5A
Electric CabinetRittal AE1038 380x600x210 mm
Head coolingAir cooling of sensor electronics
PLCSiemens S7-1200
Scanner Type9144P
Construction Single-sided,
Stainless Steel construction
Timing belt drive
Max Measuring depth3000 mm
ExtrasGuide rolls for the sheet
Power supply24 VDC, 5A
Electric CabinetRittal AE1038 380x600x210 mm
Head coolingAir cooling of sensor electronics
PLCSiemens S7-1200
